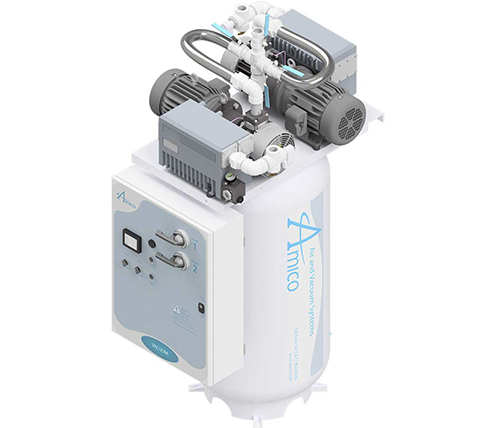

Main image for Amico's NFPA Duplex RVL Vertical Tank Mount

NFPA Duplex RVL Vertical Tank Mount

Available for vacuums ranging between 1.5 – 10.1 HP, the vertical tank mount configuration minimizes installation costs and maximizes availability of floor space. The duplex vertical tank mount configuration consists of two vacuum systems mounted on top of the receiver tank.

Features

General Features

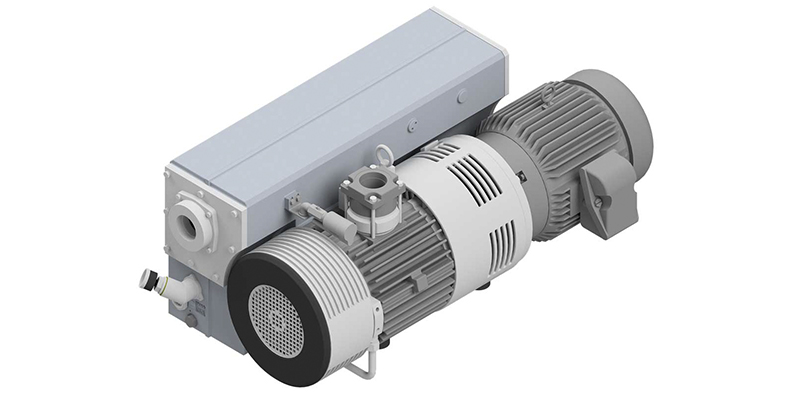

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Vacuum System Accessories

Non-return valve
Back pressure gauge
High discharge temperature sensor (with visual indicator)
Oil drain valve
Oil sight glass
Flexible connector
Isolation valve
Check valve

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

General Features

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

Downloads

Specs

eco plus control panel specs

premium 3.5 control panel specs

premium 5.7 control panel specs

premium 7.5 control panel specs

medical gas pipeline and source system specs

lubricated rotary vane vacuum systems specs

Drawing

NFPA lubricated rotary vane vac dup vert drawing

Manual

lubricated rotary vane vacuum systems manual

Instructions

as_dg_nfpa_vacuum_systems.pdf

medical gas design guide

Comparison Chart

vacuum technology comparison chart

Brochure

air and vacuum systems brochure

Sizing Guide

equipment sizing guide
