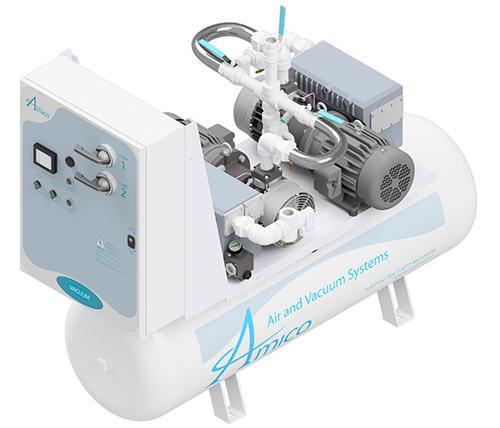

NFPA Duplex RVL Horizontal Tank Mount

The duplex horizontal tank mount lubricated rotary vane pumps provide footprint reduction and enhance the overall serviceability by means of a compact design. Relative to the space saver configuration, the horizontal tank mount is capable of accommodating larger sized pumps and accessories. The duplex horizontal tank mount configuration consists of two vacuum pumps mounted on top of the tank. Positioned horizontally on top of the receiver tank, this configuration is available for pumps ranging between 1.5 – 10.1 HP, offering you maximum space efficiency.

Features

General Features

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Vacuum System Accessories

Non-return valve
Back pressure gauge
High discharge temperature sensor (with visual indicator)
Oil drain valve
Oil sight glass
Flexible connector
Isolation valve
Check valve

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

General Features

Oil-Sealed Rotary Vane vacuum pump with air cooled design
UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Control Panel

UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display
Manual reset for all alarms
All control and alarm functions shall remain energized while any pump in the system remains electrically online
Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
Lag pump will start automatically should the lead pump fail to operate

Downloads

Specs

eco plus control panel specs

234.93 KB

premium 3.5 control panel specs

221.65 KB

premium 5.7 control panel specs

221.50 KB

premium 7.5 control panel specs

221.48 KB

medical gas pipeline and source system specs

734.55 KB

lubricated rotary vane vacuum systems specs

381.72 KB

Drawing

NFPA lubricated rotary vane vac dup horiz drawing

1.20 MB

Manual

lubricated rotary vane vacuum systems manual

1.59 MB

Instructions

as_dg_nfpa_vacuum_systems.pdf

9.87 MB

medical gas design guide

22.58 MB

Comparison Chart

vacuum technology comparison chart

92.78 KB

Sizing Guide

equipment sizing guide

80.03 KB

Brochure

air and vacuum systems brochure

11.77 MB
