2' x 2'
Exam
Solar Series
Solar Series Exam offers high-quality exam lighting in a traditional patient room lighting design to support clinicians with visual acuity.
Description

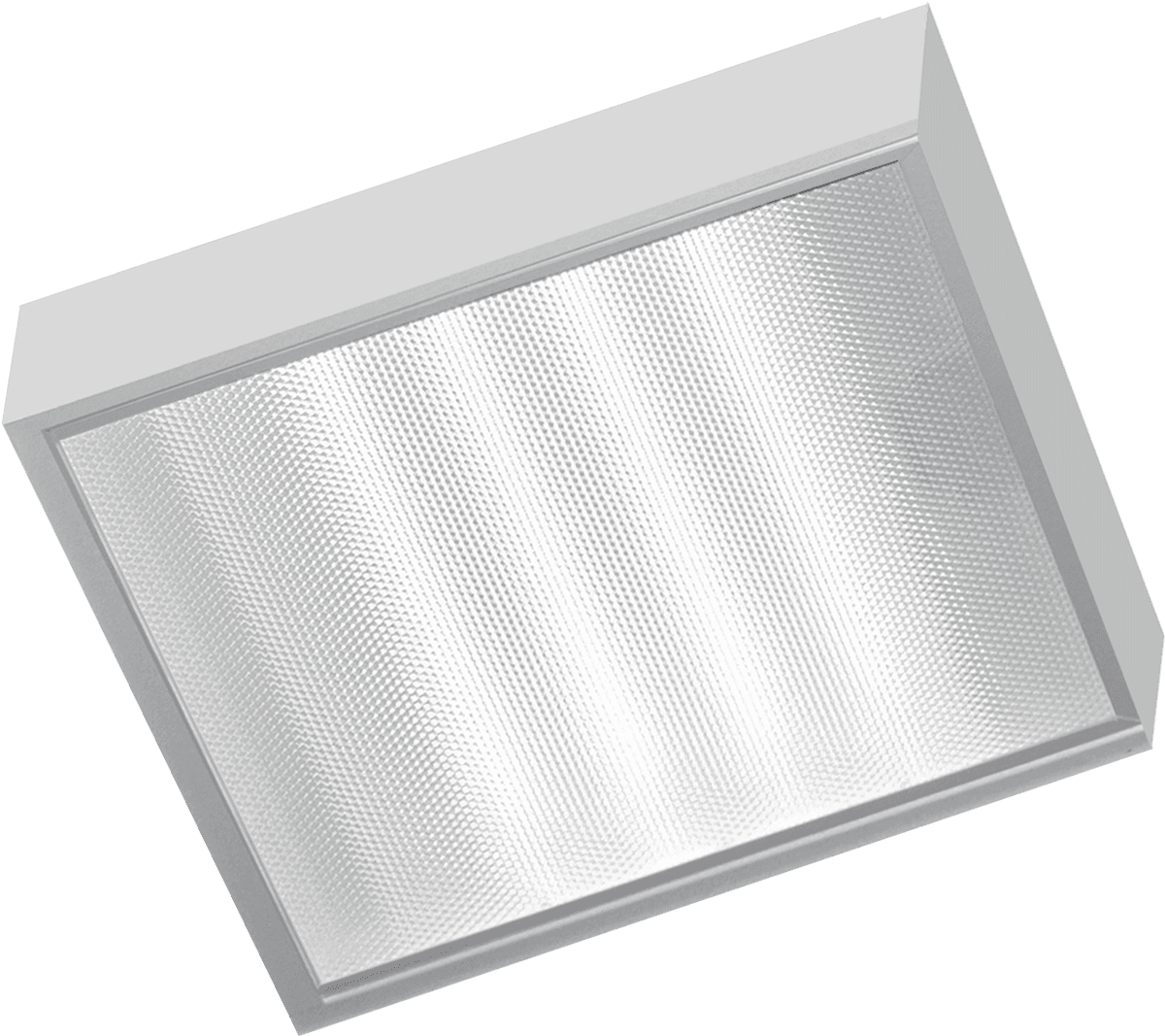

Solar Series Exam 2 x 2 offers glare-free exam lighting in a traditional patient room lighting design. This recessed exam fixture is engineered to provide maximum light output onto the patient bed and comes with an optional chart light to improve clinical workflow. A prismatic lens ensures even glare-free light distribution for increased clinical efficiency.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- 99 W
Standard Lumen Output
- 11,646 LMS
Dimming Options
- 0 - 10 Volts
- Standard 5% dimming
- Contact factory for 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LED (or equivalent) mounted to linear boards
Lamp Shielding
- Semi-specular parabolic louver and clear prismatic lens
Optional Ingress Barrier
- IP65 rated 3mm clear acrylic barrier covers the entire fixture using a piano hinge
- Door frame secured to the housing and a closed-cell neoprene/EPDM/SBR gasket seals the door frame to the housing
