2' x 2'
Exam

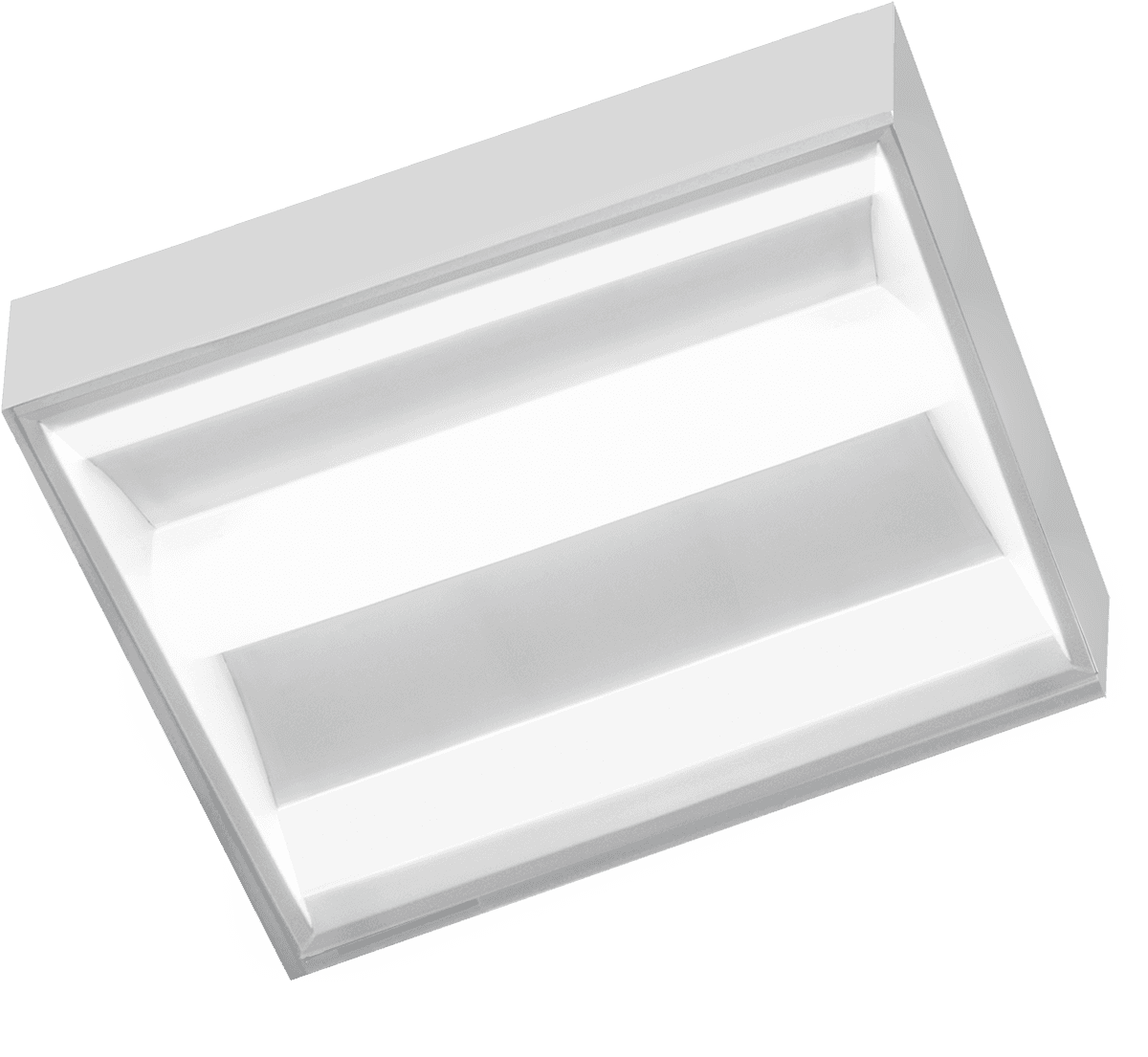

Solar Eclipse
This architectural patient room fixture offers high-quality exam lighting to support clinicians with reliable and consistent performance.
Description
The sleek and modern design of the Solar Eclipse Exam merges architectural aesthetics with exceptional lighting performance to improve patient comfort while maximizing clinical efficiencies. This architectural patient room fixture offers high-quality exam lighting with proper lumen output and glare-free lenses to support clinicians with reliable and consistent performance. Incorporate intuitive, user-friendly controls with our LightMaster Multifunctional Switch to further enhance functionality.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- 41 W
Standard Lumen Output
- 4,140 LMS
Dimming Options
- 0 - 10 Volts
- Standard 5% dimming
- Contact factory for 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70> 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Lens
- High impact
- LED specific acrylic
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LED mounted to aluminum core linear boards
Optional Ingress Barrier
- IP65 rated fully enclosed CRS cover, with 3mm clear acrylic lens
