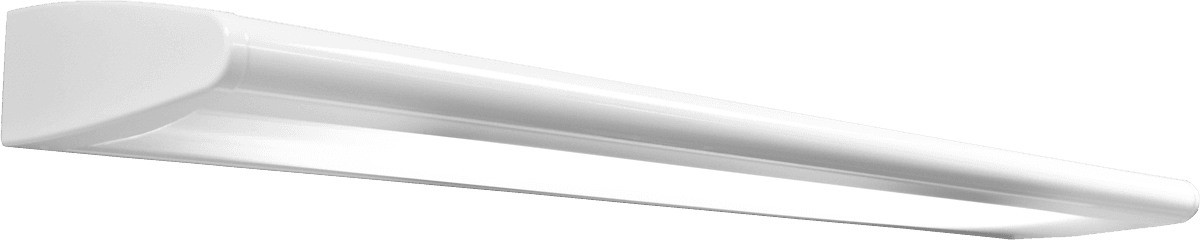

Skyline Overbed - LED Light
Skyline Series
The Amico Skyline Series offers a multifunctional overbed light with a sleek and elegant design to meet the needs of both the patient and caregiver.
Description

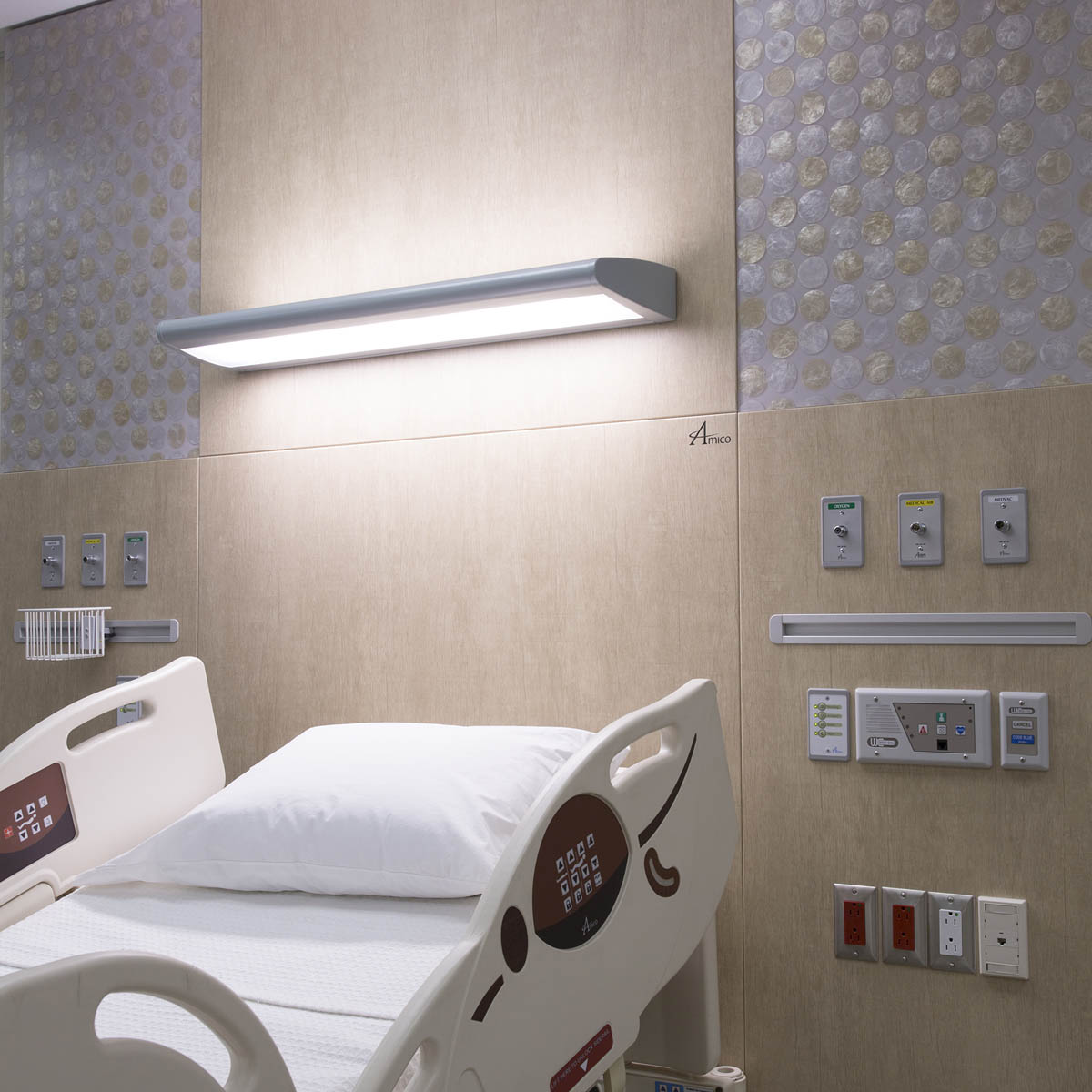

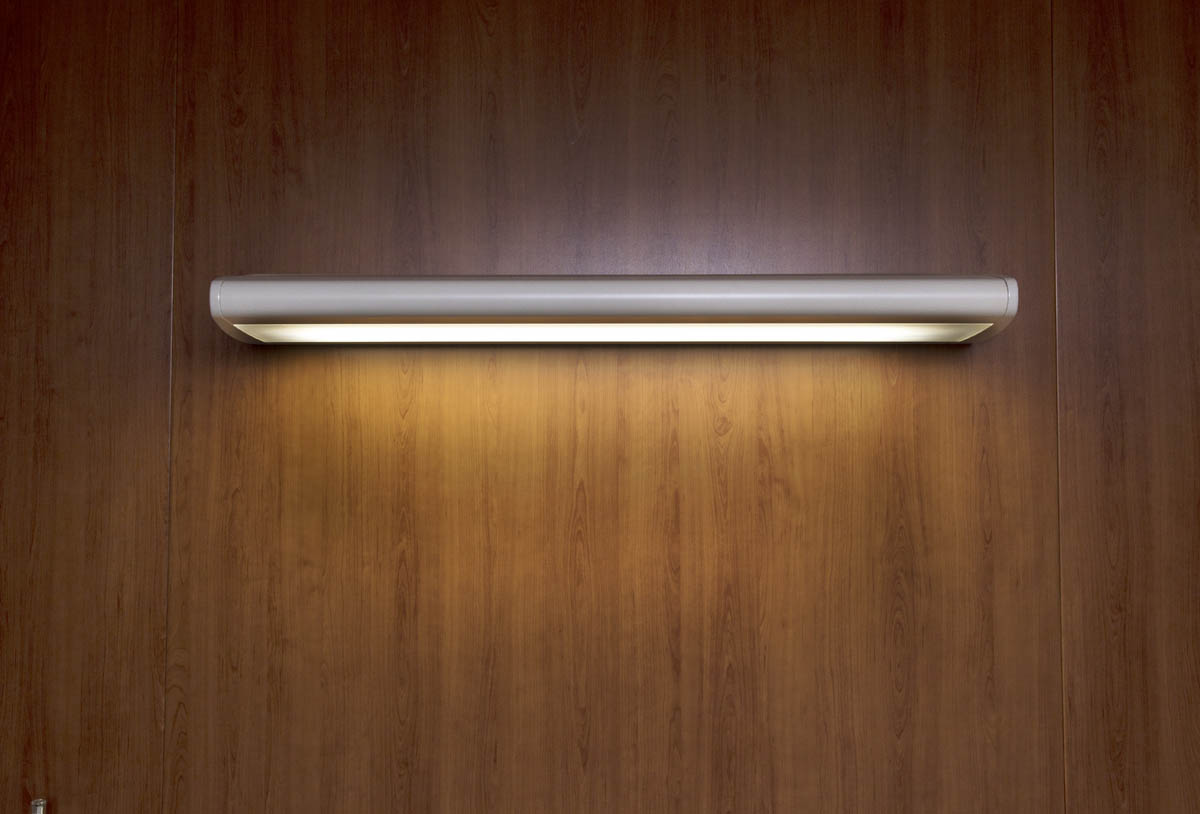

Inspired by the aerodynamic shape of an airplane wing, the Skyline Series Overbed LED Light offers a sleek and elegant design that meets the needs of both the patient and caregiver. When placed on the headwall above the patient bed, the Skyline overbed light delivers high-level illumination and even light distribution to allow caregivers to perform thorough examinations with ease. Reading and ambient functions provide the patient with additional comfort to promote healing and an overall sense of well-being. The Skyline offers multiple lighting configurations and switching options to be used in various settings throughout the hospital. Incorporate intuitive, user-friendly controls with our LightMaster Multifunctional Switch to further enhance functionality.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Total: 112.3 W
- Exam: 48.2 W
- Ambient: 32.3 W
- Reading: 30.0 W
Standard Lumen Output
- Total: 9,964 LMS
- Exam: 3,950 LMS
- Ambient: 3,321 LMS
- Reading: 2,739 LMS
Dimming Options
- 0 - 10 Volts
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards for dry/damp locations by ETL
- Conforms to CSA standards for dry/damp locations as per ETL testing
Housing
- Marine Grade Aluminum Extrusion

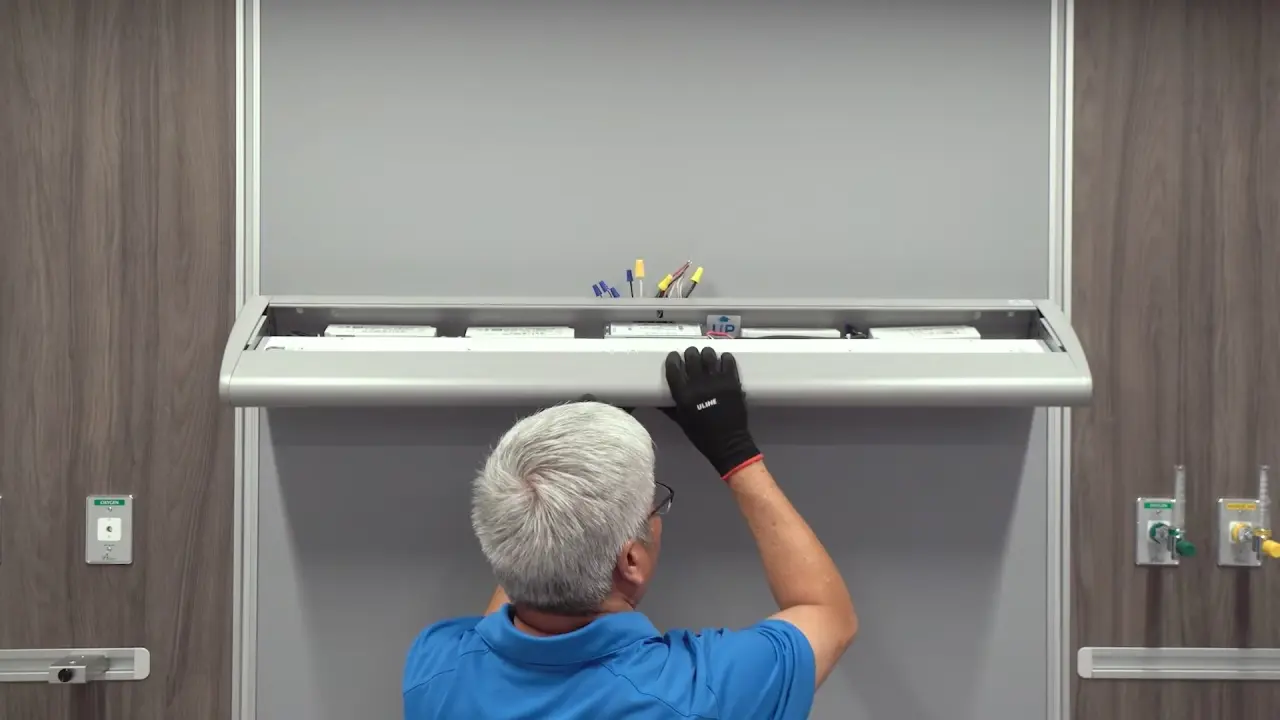

- Housing attaches to mounting plate provided and secured to PEM studs
- Unique hinge design on mounting plate for single man install
Finish
- Hospital grade material and finish
Lens
- High Impact, frosted polycarbonate
- Extruded to frame for tight fit and infection control
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Light Source
- Samsung LED mounted to aluminum core linear boards
Color Options
- Antique white and Silver aluminum finishes
Length Options
- Nominal 2' Actual: 26.75" (679.5 mm)
- Nominal 3' Actual: 38.75" (984.3 mm)
- Nominal 4' Actual: 50.75" (1289.1 mm)
