2' x 2'
Light Panel
MRI Series
Amico's 2x2 LED Light Panel is explicitly designed for the MRI space and offers general ambient lighting to support clinicians and improve patient comfort.
Description

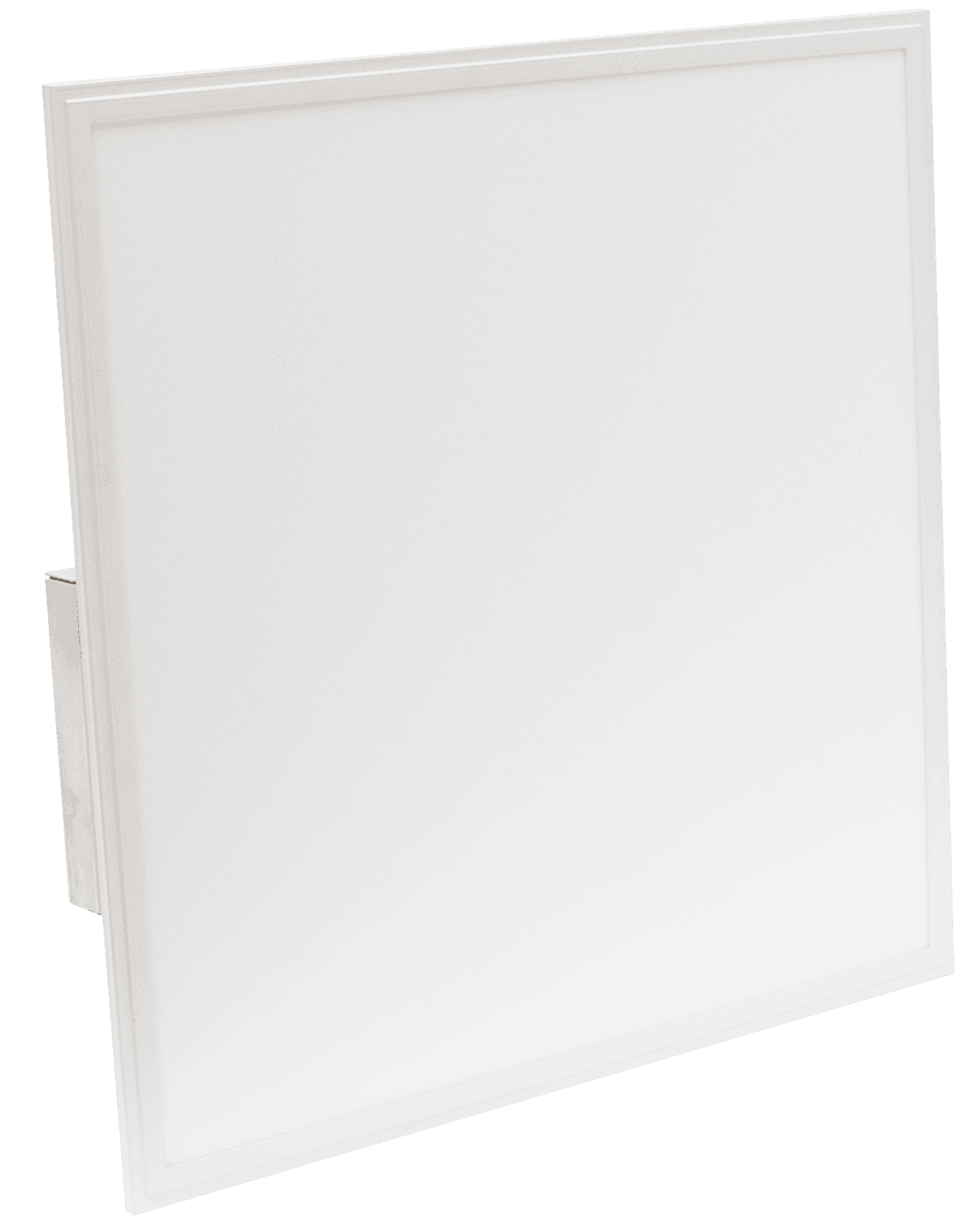

The LP22 - 2' x 2' LED Light Panel is a non-ferrous, LED Light Panel for use within a ceiling grid for general lighting. The LP22 - 2' x 2' LED Light Panel was designed specifically for use in MRI scan rooms. Contains no on-board electronics therefore will not interfere with MRI imaging. Certified to meet MRI vendor EMI requirements. MRI applications require EMI free emissions for specific frequency bands. All drive circuitry employs linear regulation and no pulse width modulation (PWM*).
Specifications
Overall Dimensions
- 23 11/16" x 23 11/16"
Electrical Connection
- Junction Box
Fixture Weight
- 8 Lbs
Input Voltage
- 36 Vdc
Input Current
- 1.1 A
Input Power
- 40 W
Heat
- 136 BTU/h
Listed
- UL 2108
- CSA C22.2#250.0
CE
- Pending
RoHS
- Pending - 2011/65/EU
Storage Temperature
- -40˚C / 85˚C
Operating Temperature
- -20˚C / 35˚C
Humidity
- 5 % / 95 %
Warranty
- Limited three (3) year warranty
