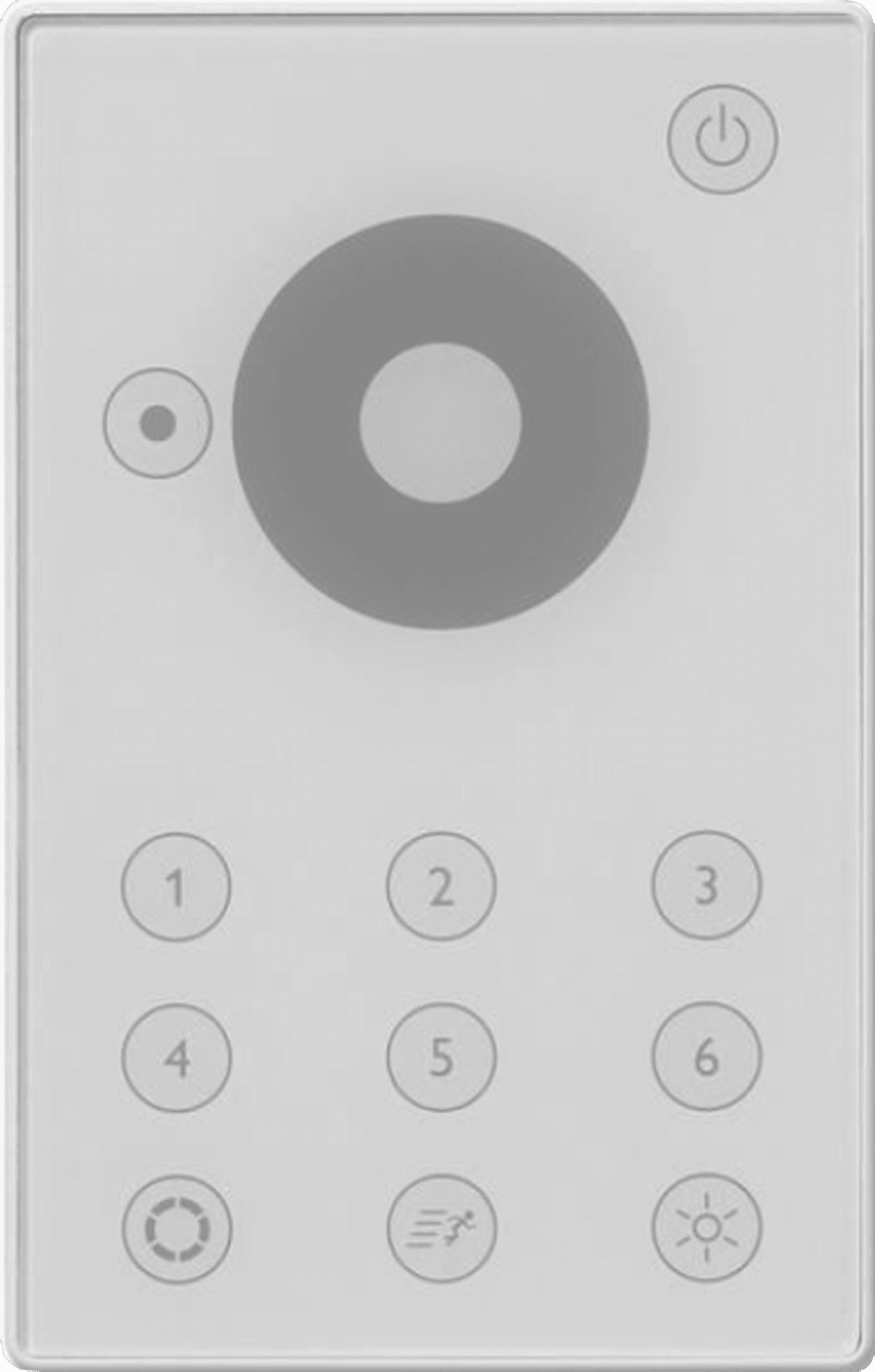

RGB Wall Mounted Touch Controller
MRI Control Series
The RGB Wall Mounted Controller is a standalone DMX512 controller designed for use with LED luminaires. Select from six pre-set colors and sequences for a color-changing light show.
Description
The RGB Wall Mounted Touch Controller is a standalone DMX512 controller for LED luminaires. The controller allows you to select from six pre-set, static RGB colors or a dynamic sequence of color-changing programs. Select and store custom colors with the toggle wheel in one of six memory pre-sets, or seamlessly adjust each lighting sequence's brightness and speed levels for a color-changing light show.
Features
Specifications
Input Voltage
- 12 - 24 Vdc
- 50/60Hz
Power Consumption
- 1.2 W
Dimensions
- 4.7" (H) x 3" (W) x 0.6" (D)
Housing
- Polycarbonate Glass Faceplate
Mounting
- Mounts to single-gang j-box
Fixture Weight
- 6 oz.
Listed
- ETL
- FCC
- Class B
- CE
- C-Tick
- CB
- SAA
Environmental Safety
- IP20
Storage Temperature
- -20˚C / 70˚C
Operating Temperature
- 0˚C / 35˚C
Warranty
- Limited one (1) year warranty
