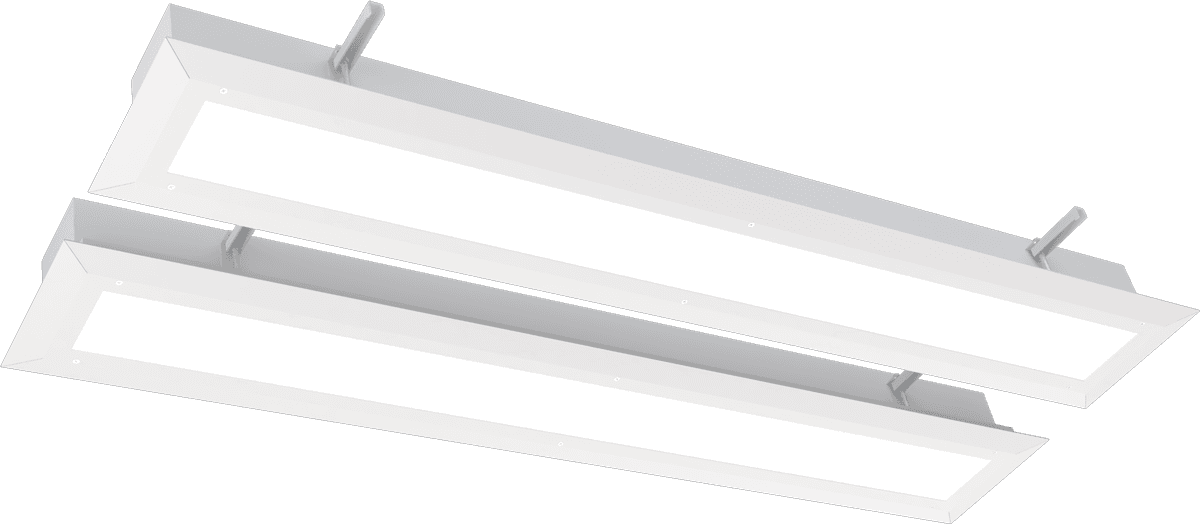

6" x 48"
Ambient Exam
Behavioral Series
Amico's behavioral health luminaires are designed to mitigate risks to patient health with an anti-ligature design, Torx screw fasteners, and tamper-proof lens.
Description

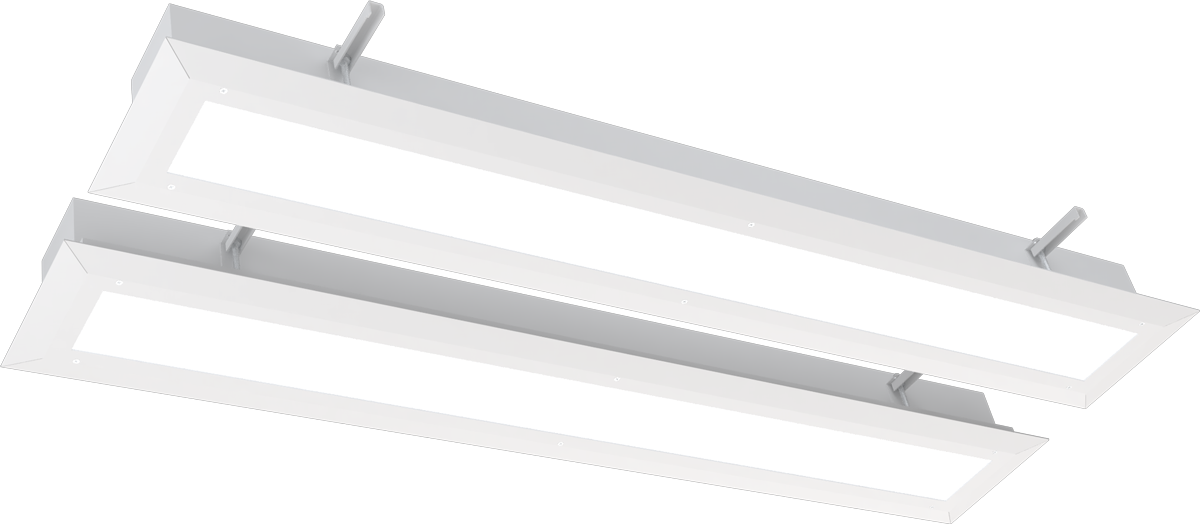

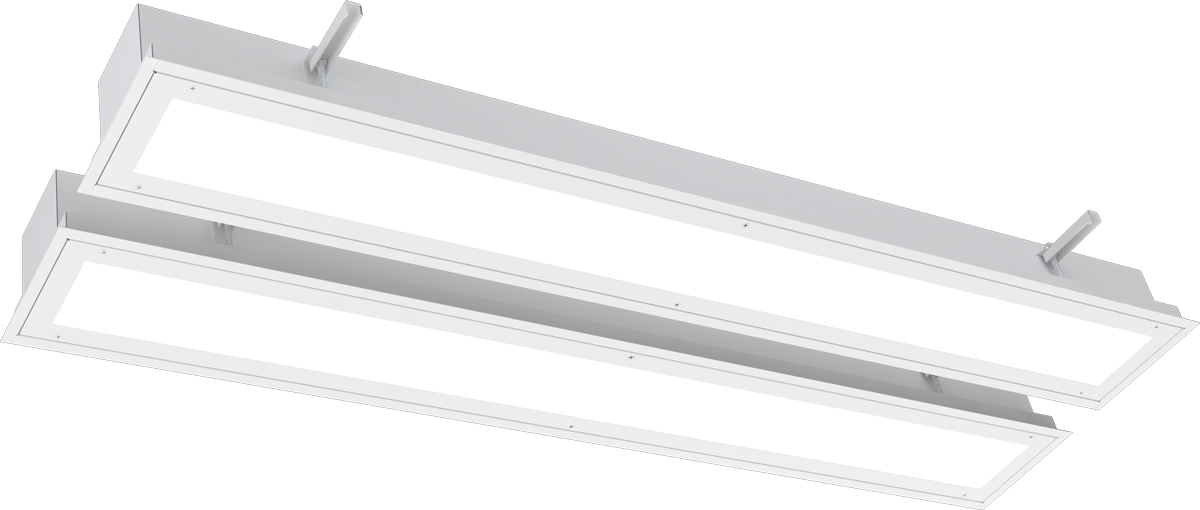

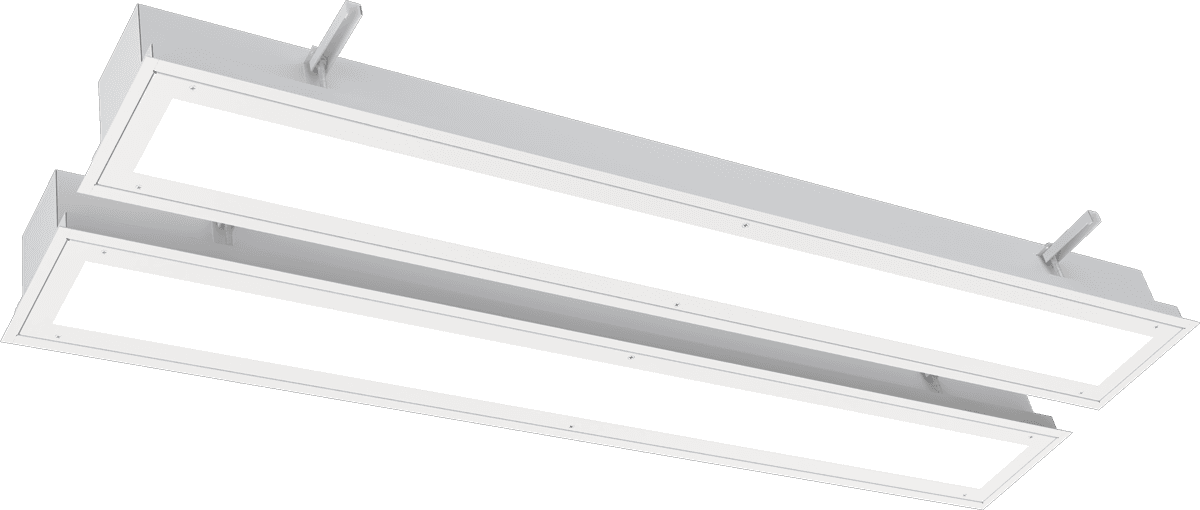

The Solar Duo Med Ambient Exam Behavioral luminaires merge architectural aesthetics and superior lighting performance to provide a sleek and modern design to any patient room. The linear design offers a visual comfort to enhance the patient's overall well-being, while the exam function provides high-level illumination to support clinicians with visual acuity. To ensure patient safety -- this behavioral health luminaire features an anti-ligature design, Torx screw fasteners, and a tamper-proof polycarbonate lens for added security.
Features
Specifications
Voltage
- 120 - 277 Volts
Standard Wattage
- Exam: 40 W
- Ambient: 30 W
- Total Pair: 140 W
Standard Lumen Output
- Exam: 4,230 LMS
- Ambient: 3,185 LMS
- Total Pair: 14,830 LMS
Dimming Options
- 0 - 10 Volts
- Standard 1% dimming
- DALI options available
Color Quality
- Standard 80 CRI
- Contact factory for 90 CRI
Standard Color Temperature
- 3000 K
- 3500 K
- 4000 K
- Contact factory for additional options
Life of LEDs
- L70 > 100,000 hours
Warranty
- Limited five (5) year warranty
Listings
- Certified to UL standards by ETL
- Conforms to CSA standards as per ETL testing
Housing
- 20ga CRS
- Single-piece
- Seam-welded construction
Finish
- White urethane powder coat finish
- 5 step treatment
- Hospital grade material and finish
Lens
- Impact-resistant
- Clear polycarbonate lens
- Available in different thickness
Light Source
- Samsung LEDs mounted on Aluminum Core PCB
Drivers
- High power factor constant current
- 0.97 pf @ 120 Volts (Class 2, Class II)
Ingress Barrier
- IP65 rated fully enclosed 16Ga CRS cover
- Contentious lens retention system
- Tested and proven anti-ligature construction
