AHM Monitor Arms (Adjustable Height)
Our AHM (Adjustable Height) Monitor Arms feature 120° of height adjustability and 180° side to side motion so that you can easily adjust the position of your attached monitor. The Adjustable Height Monitor Arms can also be locked in any position to maintain the desired height adjustment. The AHM can be mounted directly to any equipment rail or wall channel. Integrated cable management allows you to tuck away cords so that they move with the AHM.
Request Information
AHM Monitor Arms (Adjustable Height)
Features
- 180° side to side motion
Specifications
Reach
- 18" - 34" (45.7 cm - 86.3 cm)
Arm Rating
- 40 lbs (18.1 kg)
Tilt Limit
- 30° (On Specific Models)
Height Adjustment
- 17" (43.2 cm)
Counterbalance Adjustment Range
- 0 - 40 lb (0 - 18.1 kg)
Options
Channel Mount

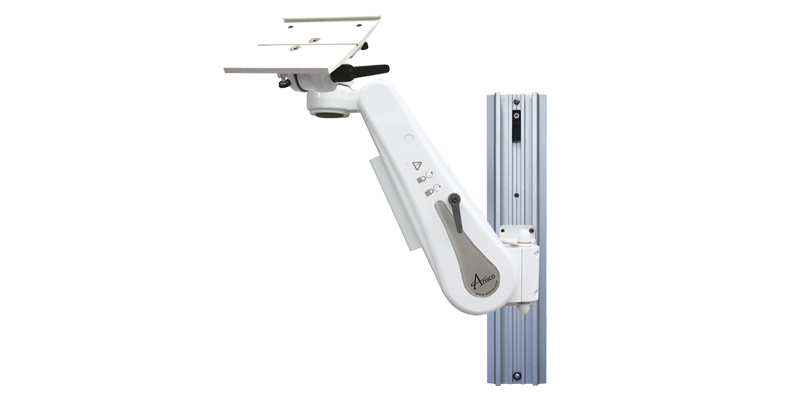

Channel to Wall
- Channel mounts directly to the wall

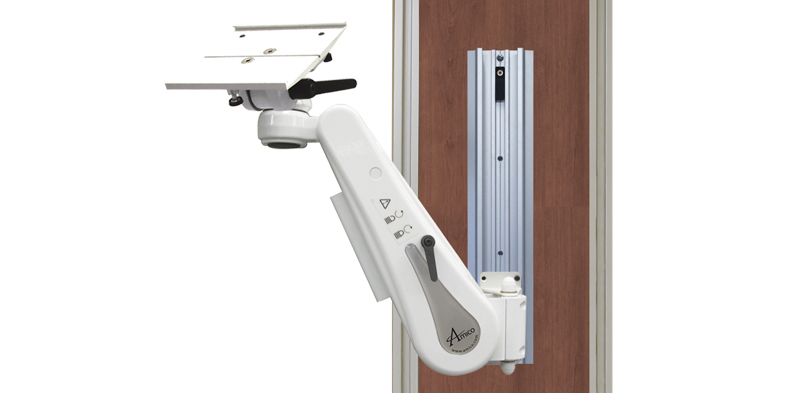

Channel to Power Column
- AHM mounts directly to existing monitor channel on power column or flatwall

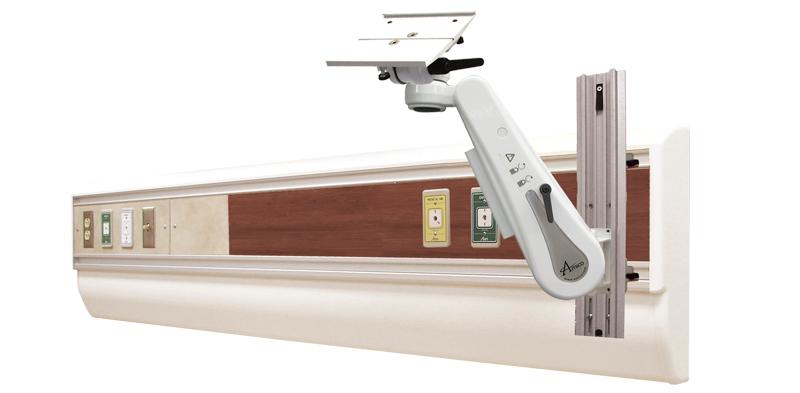

Channel to Headwall
- Channel mounts directly to existing rail on headwall
- Channel can be mounted anywhere along length of headwall

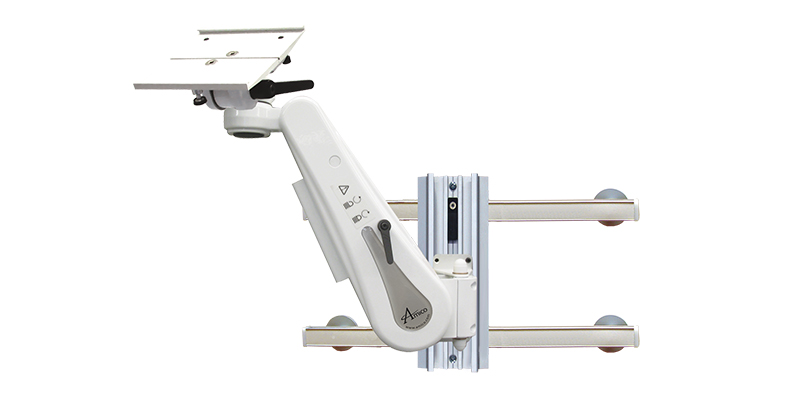

MRS Channel to Equipment Rail
- Channel mounts directly to equipment rails
- Channel can be mounted anywhere along length of rail
Direct Rail Mount

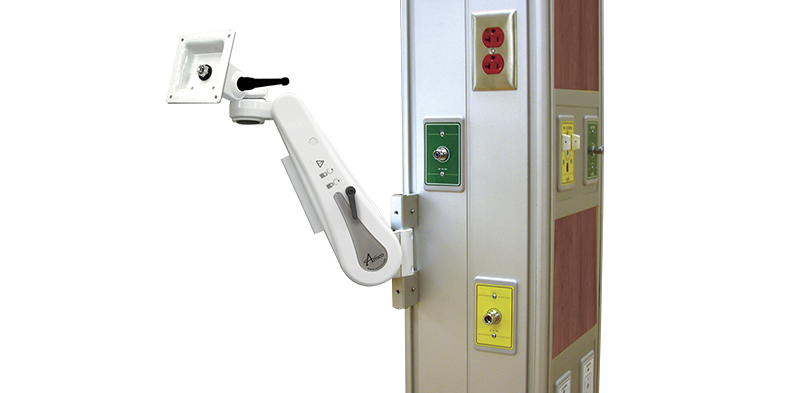

Direct to Power Column
- Mounts directly to existing vertical rail on power column or flatwall

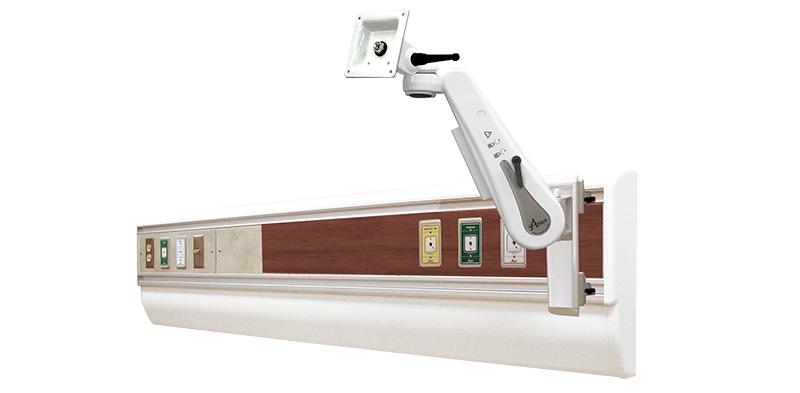

Direct to Headwall
- Mounts directly to existing horizontal rail on headwall

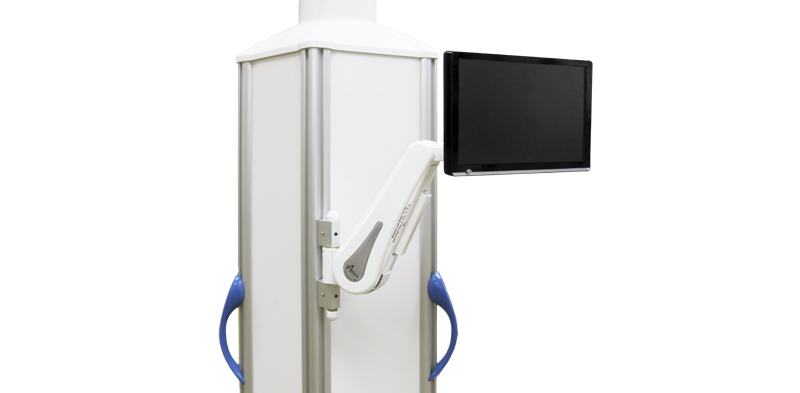

Direct to Boom
- Mounts directly on to boom system
Arm Extensions
6" (15.2 cm) Arm Extension
- 24" (61 cm) reach
- Part Number: AHM-7FX
9" (22.9 cm) Arm Extension
- 27" (68.6cm) reach
- Part Number: AHM-3FX
12" (30.5 cm) Arm Extension
- 30" (76.2 cm) reach
- Part Number: AHM-1FX
16" (40.6 cm) Arm Extension
- 34" (86.3 cm) reach
- Part Number: AHM-5FX
