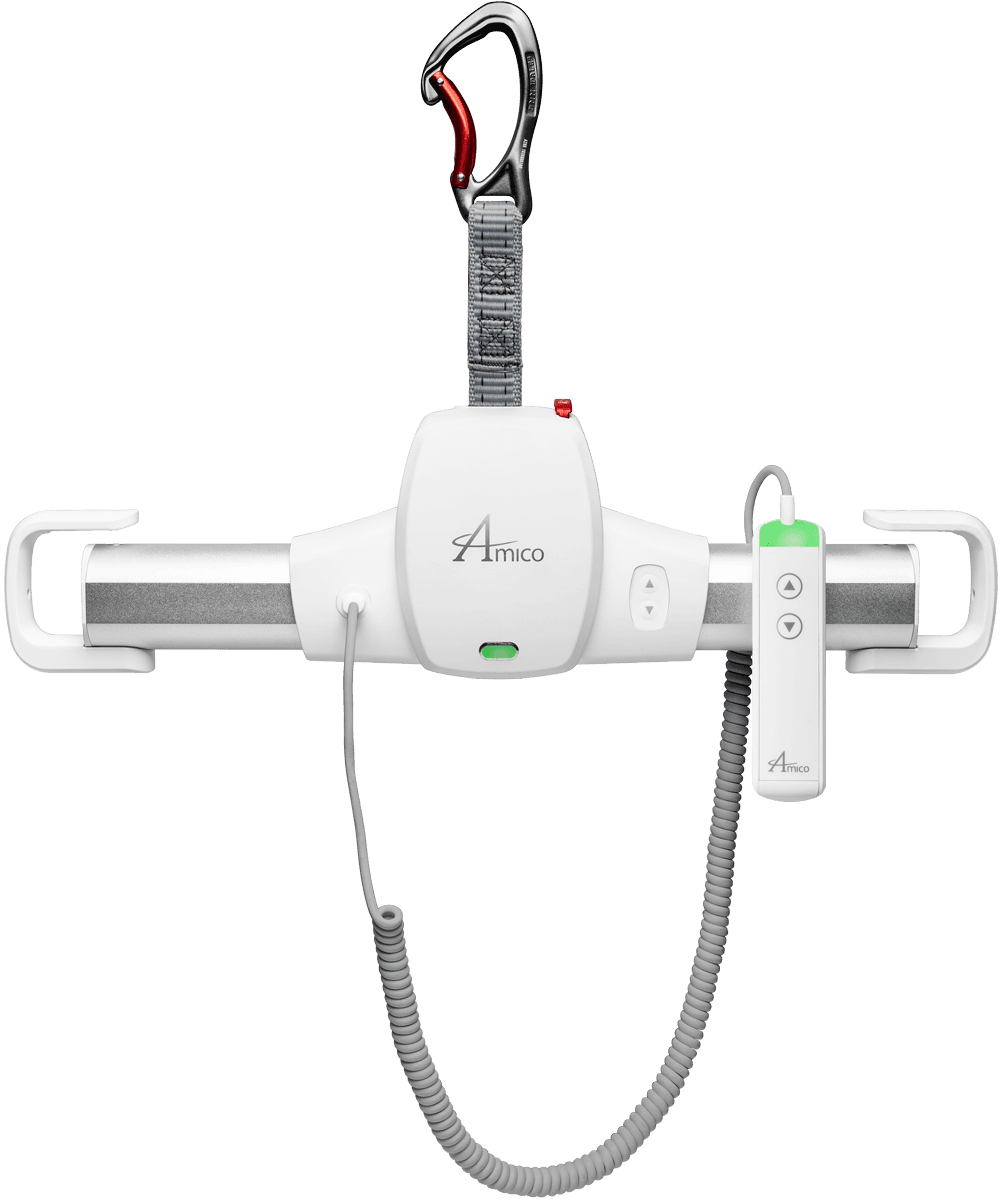

GoLift Portable450

The Amico GoLift Portable450 system is designed for clinicians to easily transfer a patient lift from room to room. The Amico GoLift Portable450 system is the smallest and lightest portable patient lift on the market today, weighing only 6lbs. This makes the transition of the lift from room to room easy and possible. The GoLift Portable450 can lift up to 450lbs, catering to a wide variety of patient clientele. The seamless design comprises of capacitive touch, and magnetic attachments, allowing for easy cleaning and infection prevention.

The anatomy of the Amico GoLift Portable450, has an impressive set of all metal gears and state-of-the-art battery technology. The nickel metal hydride battery allows for triple the charge volume, permitting up to 55 lifts per charge- pending patient weight. In addition, the revolutionary trolley design allows for quick installation of the trolley into and out of the track, and can be integrated into any track system.

Maximum Lifting Speed:

  • No load:  1.7 inches/second
  • 150 lbs/68 kg: 1.3 inches/second
  • 450 lbs/204 kg: 1.0 inch/second

Unit Weight:

  • 6 lbs

Safe Working Load (SWL):

  • 450 lbs

Dimensions:

  • Length: 19.4" (49.27 cm)
  • Height: 5.2" (13.20 cm)
  • Depth of Lift: 3.7" (9.398 cm)
  • Strap Length: 74" (187.96 cm)

Number of Lifts per Charge (Duty: 10/90):

  • 78 with 150 lbs (25% of strap at midrange)
  • 46 with 450 lbs (25% of strap at midrange)
  • Charging time: 2-4 Hours

Lift Case:

  • Flame retardant ABS
  • IP23 Lift - protected from fingers and water spray less 60 degrees from vertical

Batteries:

  • High Capacity, Long Lasting NiMH
  • 1 x 24V (1.6Ah)

Battery Charger:

  • Input: 100-240VAC
  • Output: 36VDC, 40 Watt, 1.0A

Hand Control:

  • IPX4 Hand Control – protects from splashing water, no matter the direction

Safety:

  • Emergency Stop
  • Emergency Lowering Device: Independent Circuit
  • Manual Lowering
  • Upper Limit Detection
  • Lower Limit Detection
  • Slack Tape Sensor
  • Free Fall Brake (Over Speed Governor)
  • Low Battery and Dead Battery Alarms
  • Soft Start and Stop
  • Overload Protection

Approvals:

  • CAN/CSA-C22.2 No 60601-1:08
  • CAN/CSA-Z10535.1:15

Expected Service Life:

  • 22,500 cycles or 10 years. It is recommended that the lift be replaced after this time.
  • The expected life of slings, batteries fuses, straps and cord is dependent upon proper maintenance.

  • Capacitive Touch Hand Control

  • Reacher Bar

  • Durability and Strength

Additional Features

  • Light Weight and Portable
  • LED Indicators
  • Infection Control
  • Durable and Strong
  • Easy to Service
  • Magnetic Hand Control Docking

Sling Options

GoBasic

basic

  • Supports the whole body including the head

  • Can be used to lift patients with little control over their head and body

  • Can be used to lift and transfer from all patient surfaces including the floor





GoLong

long

  • Can be used to reposition the patient in bed

  • Ideal for transferring patients to other surfaces including beds and stretchers

  • Can be left underneath the patient





GoHygiene

hygiene

  • Suitable for patients who have head control but reduced upper body strength

  • Support around the body can be adjusted with the belt

  • Large opening at the bottom allows access for toileting and hygiene





GoComfort

comfort

  • Supports the whole body except the head

  • Can be used to provide good support for amputees

  • Can be used to lift patients who have little control over their body

  • Can lift from a seated or laying position

  • Patients that require additional support around hip and thighs





GoTurn

turn

  • Provides sling solutions for repositioning

  • Typically used for moving patient up the bed, or turning them



GoActive

active

  • Provides assistance lifting a patient from a seated position

  • GoActive offers upper body support and allows patients to exercise in a rehabilitation setting



GoLimb

GoLimb

  • Suitable for lifting or supporting limbs on a person with disabilities, muscle atrophy, etc.

  • Ideal for use with patient lifts and for lifting of heavy arms or legs



GoCustom

GoLift Custom

  • All slings are manufactured in-house and can be customized on demand

  • Available in polyester or mesh materials

  • Available in sizes small to extra large

  • Available with or without head support



GoTrack Systems & Support Structure

GoTrack Single

single

  • 984 x 2.63 x 2.36"
    (2500 x 67 x 60 mm)

  • 118.1 x 2.63 x 2.36"
    (3000 x 67 x 60 mm)

  • 157.5 x 2.63 x 2.36"
    (4000 x 67 x 60 mm)

  • 196.9 x 2.63 x 2.36"
    (5000 x 67 x 60 mm)

  • 255.9 x 2.63 x 2.36"
    (6500 x 67 x 60 mm)





GoTrack Double

double

  • 125.9 x 2.63 x 3.55"
    (3200 x 67 x 90 mm)

  • 155.5 x 2.63 x 3.55"
    (3950 x 67 x 90 mm)





GoTrack Triple

triple

  • 208.7 x 2.63 x 5.75"
    (5300 x 67 x 146 mm)

  • 266.1 x 2.63 x 5.75"
    (6760 x 67 x 146 mm)
