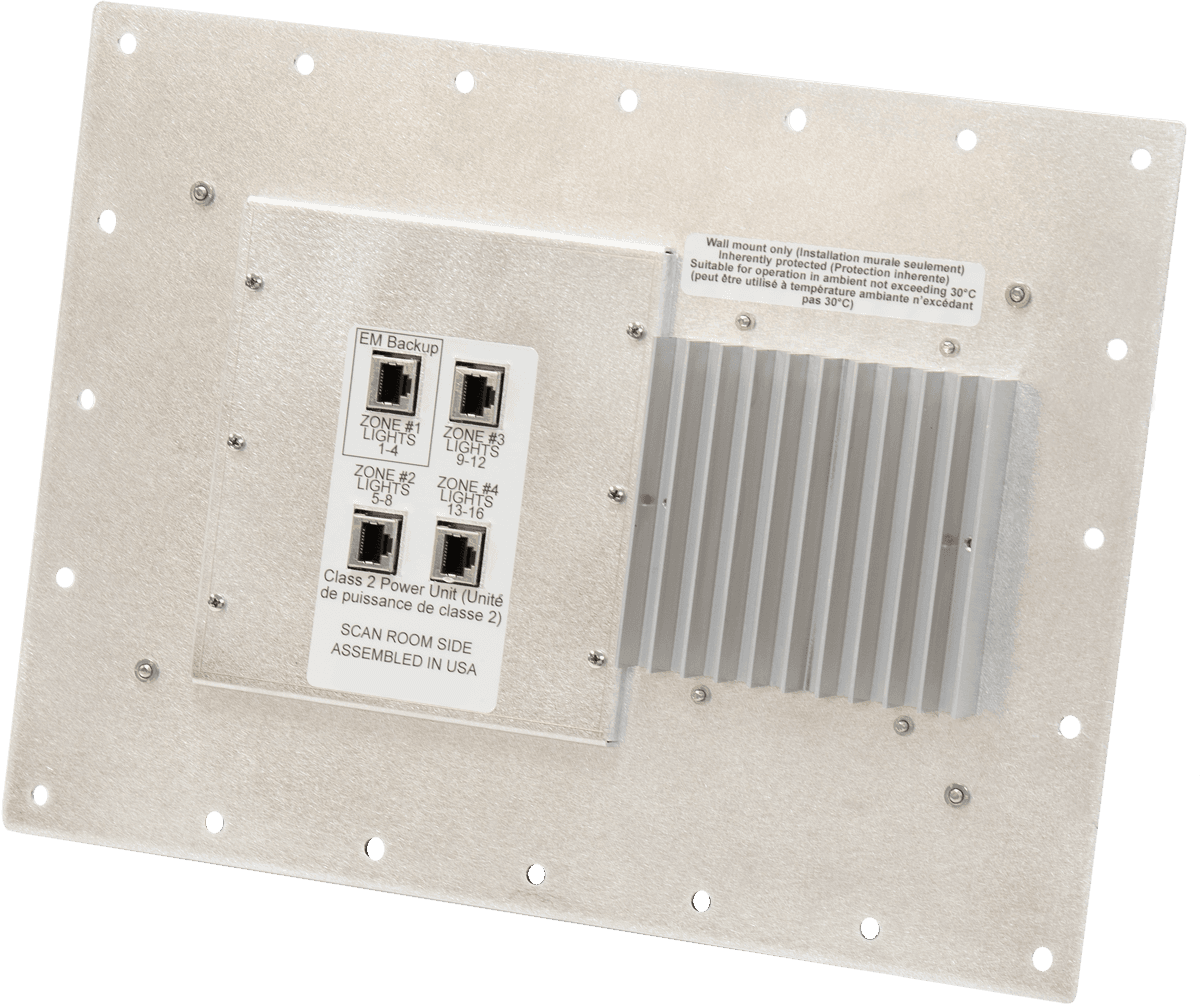

PSF16 Channel Power Supply and Filter Pack 0-10V Dimming

Solar Series - MRI

The PSF16 Channel Lighting Controller† is a constant current LED Power Supply designed specifically for MRI Suites. This supply greatly frees up space near the penetration panel by combining DC power supply, linear constant current drivers, and filter into one convenient device while still providing 100+dB of shielding effectiveness. This compact power supply is fully integrated with all needed filters required for MRI Applications. Up to 4 independent lighting zones can be achieved with this single power supply. Light zones can be controlled with off the shelf 0-10V dimmers. Each of the 16 outputs are UL1310 Class 2 rated. All drive circuitry employs linear regulation and no pulse width modulation (PWM*).
