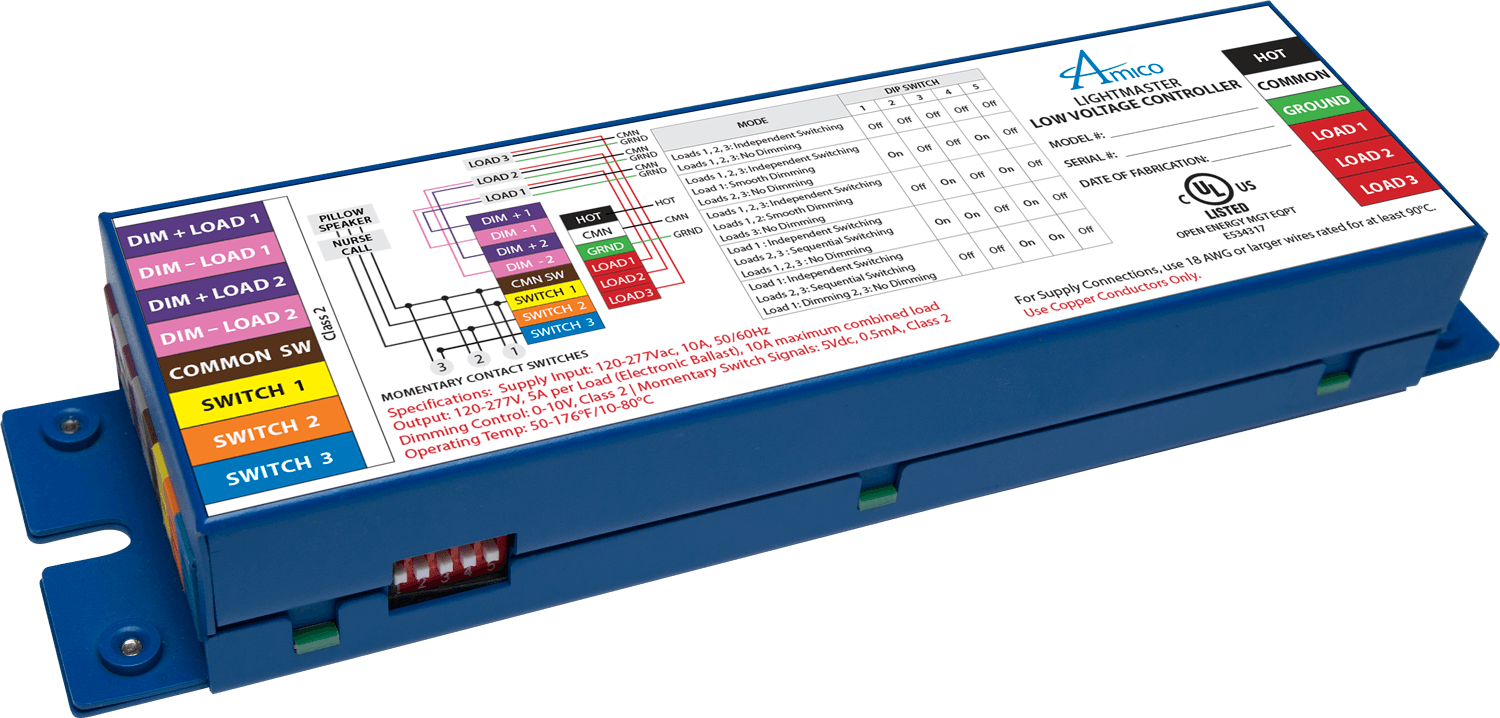

Low Voltage Controller with Dimming

LightMaster Series

The LightMaster Low Voltage Controller is designed to allow users to operate high voltage lights found in healthcare facilities using a low
voltage device such as a keypad or pillow speaker. The LightMaster Low Voltage Controller can be used and is compatible with all nurse call
systems and low voltage momentary contact switches.

  • Controls up to three light functions in the room
  • Compatible with nurse call systems used today
  • Universal input voltage of 120–277VAC
  • Color coded push in connectors for ease of connectivity
  • Compact design
  • Up to two loads have 0-10V dimming capability
  • Can be used with florescent and LED light sources
  • Five modes of operation

Input Voltage: 120-277VAC, 50/60Hz

Maximum Current: 5A RMS per load; 10A total

Dimming Control : 0-10V

Operating Temperature: 50°F to 176°F (10°C to 80°C)

Low Voltage Requirements: 5VDC @ 0.5mA

Dimensions: (L) 7" x (W) 1 ¾" x (H) 1 ¼"

Surge Protection: Tested to IEC 61000-4-2 electrostatic discharge immunity, IEC 61000-4-4 fast transient/burst immunity, IEC 61000-4-5 surge immunity.

Listings: cETLus Conforms to UL STD 244A; Certified to CSA STD C22.2 No. 184

Warranty: Limited five year warranty
